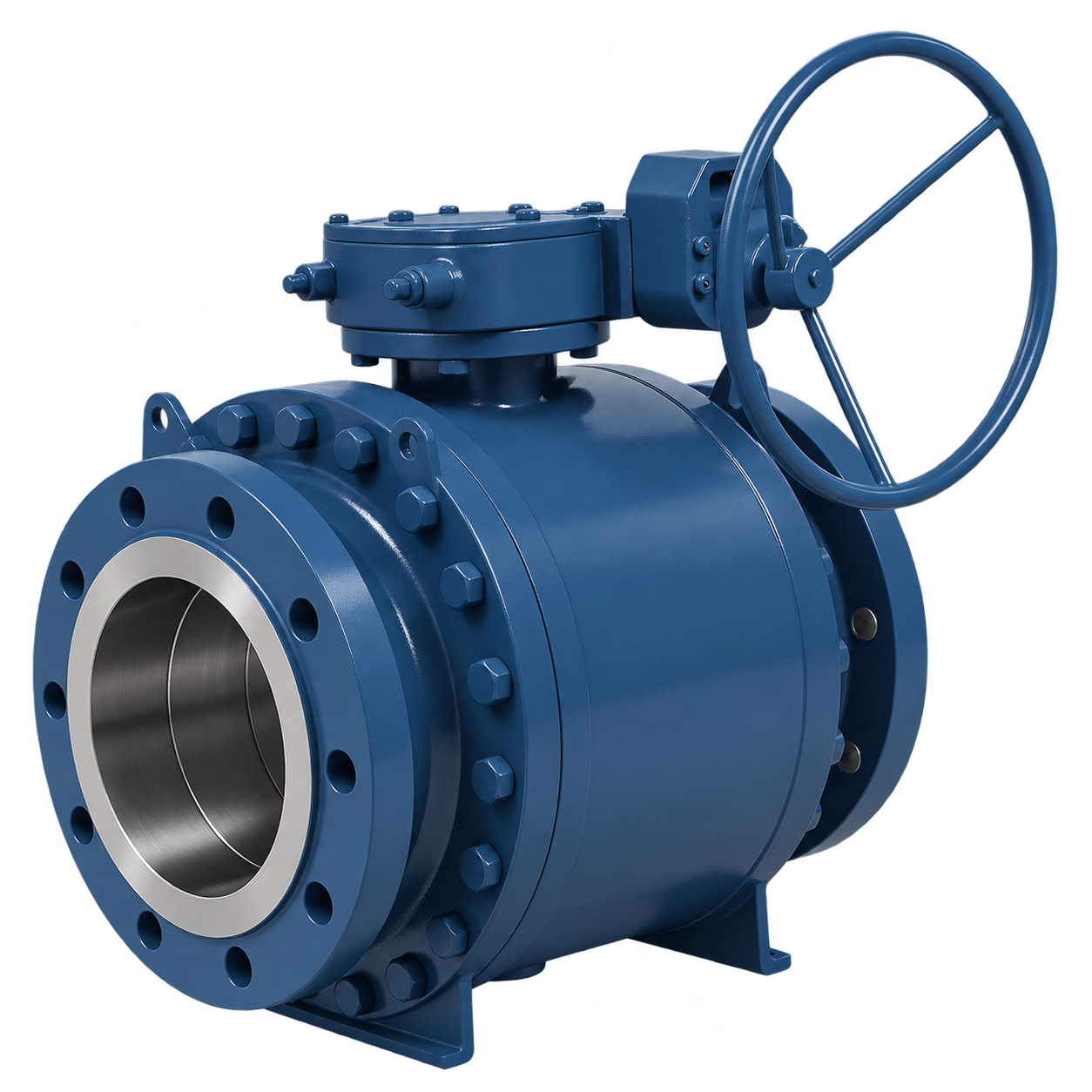

Ball Valve 413 (3-piece body)
Technical Specifications
Nominal diameter DN 25-1200 / NPS 1-48- Nominal pressure PN16-250 / Class150-1500
- Medium temperature -60 °C ... +300 °C
- Types of Valve End Connections Flanged, welded
- Leakage Class «А»
- Mounting Position Any, except for downward-driven devices
- Types of Control — manual (lever) — manual (handwheel)— manual (gearbox)— pneumatic actuation — electric actuation
- Warranty Period 12 months
- Average Service Life 10 000 cycles
- Guaranteed Service Life Not less than 5000 cycles
Product Description
Three-piece ball valve model 413 is designed for flow isolation in district heating networks, pipelines and industrial installations.
The trunnion-mounted ball is supported at the top and bottom. Body materials, ball and seat construction, pressure rating and connections are selected to suit the process conditions and project requirements.
Available configurations
- DN/PN: DN25–1200, PN10–250;
- API/ASME: NPS 1–48, Class 150–1500;
- Connections: flanged or butt-weld ends (BW);
- Function: flow isolation.
Availability of a particular size, pressure rating, material and connection combination depends on the selected configuration.
Design features
- Three-piece construction with a trunnion-mounted ball;
- Soft-seated, metal-seated and primary metal with secondary soft seal (PMSS) configurations;
- Blowout-proof stem and antistatic design, according to the selected configuration;
- Double block and bleed (DBB) arrangement with a body cavity bleed connection where specified;
- Series temperature range: −60°C to +300°C. The permitted temperature of an individual valve depends on its materials and seat construction.
Process media
Water, district heating water, steam, petroleum products, gases and other industrial media. Suitability for chemicals or corrosive media is assessed against their composition, concentration, temperature and the materials of the selected valve.
Materials and seat configurations
| Material group | ASTM / AISI / material | EN material |
|---|---|---|
| BODY | ||
| Cast carbon steel | ASTM A216 WCB | GP240GH (1.0619) |
| Forged carbon steel | ASTM A105 | P250GH (1.0460) |
| Low-temperature forged steel | ASTM A350 LF2 | P355NL1 (1.0566) |
| BALL | ||
| Carbon steel | ASTM A105; A105 + ENP | P250GH (1.0460) |
| Stainless steel | AISI 304 / ASTM A182 F304 | 1.4301 |
| Stainless steel | AISI 316 / ASTM A182 F316 | 1.4401 |
| SEAT | ||
| Soft seat | PTFE, RPTFE, carbon-filled PTFE, nylon, Devlon or PEEK | — |
| Metal seat | Metal seating surfaces with selected hardfacing or coatings | — |
| PMSS seat | Primary metal seal with a secondary soft seal | — |
Standards applicable to the selected configuration
- Design: EN 1983, API 6D, API 608, ASME B16.34, as applicable;
- Face-to-face dimensions: EN 558 / ASME B16.10;
- Flanged connections: EN 1092-1 or ASME B16.5 / ASME B16.47;
- Butt-weld ends: ASME B16.25;
- Inspection and pressure testing: EN 12266-1 / API 598; leakage rate A to ISO 5208 where specified;
- Fire-safe testing: API 6FA, API 607, ISO 10497.
Selection information
Please specify the valve size and pressure rating, process medium, operating temperature, connection standard and flange facing, seat type and required functions such as DBB or fire-safe design. For liquid service with double-piston-effect seats, the cavity pressure relief arrangement must also be defined.
