Knife Gate Valve 104 – bi-directional, two-piece body

DN50-1000 PN10-16
Guarantee
Comprehensive Documentation
Shipping

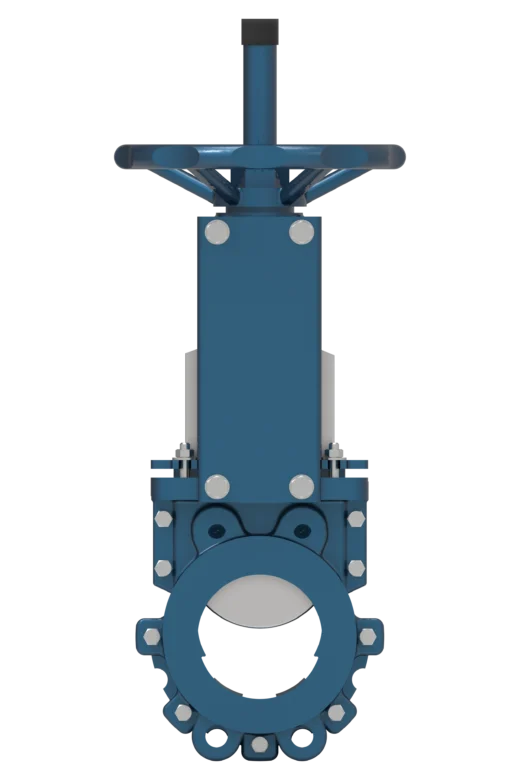

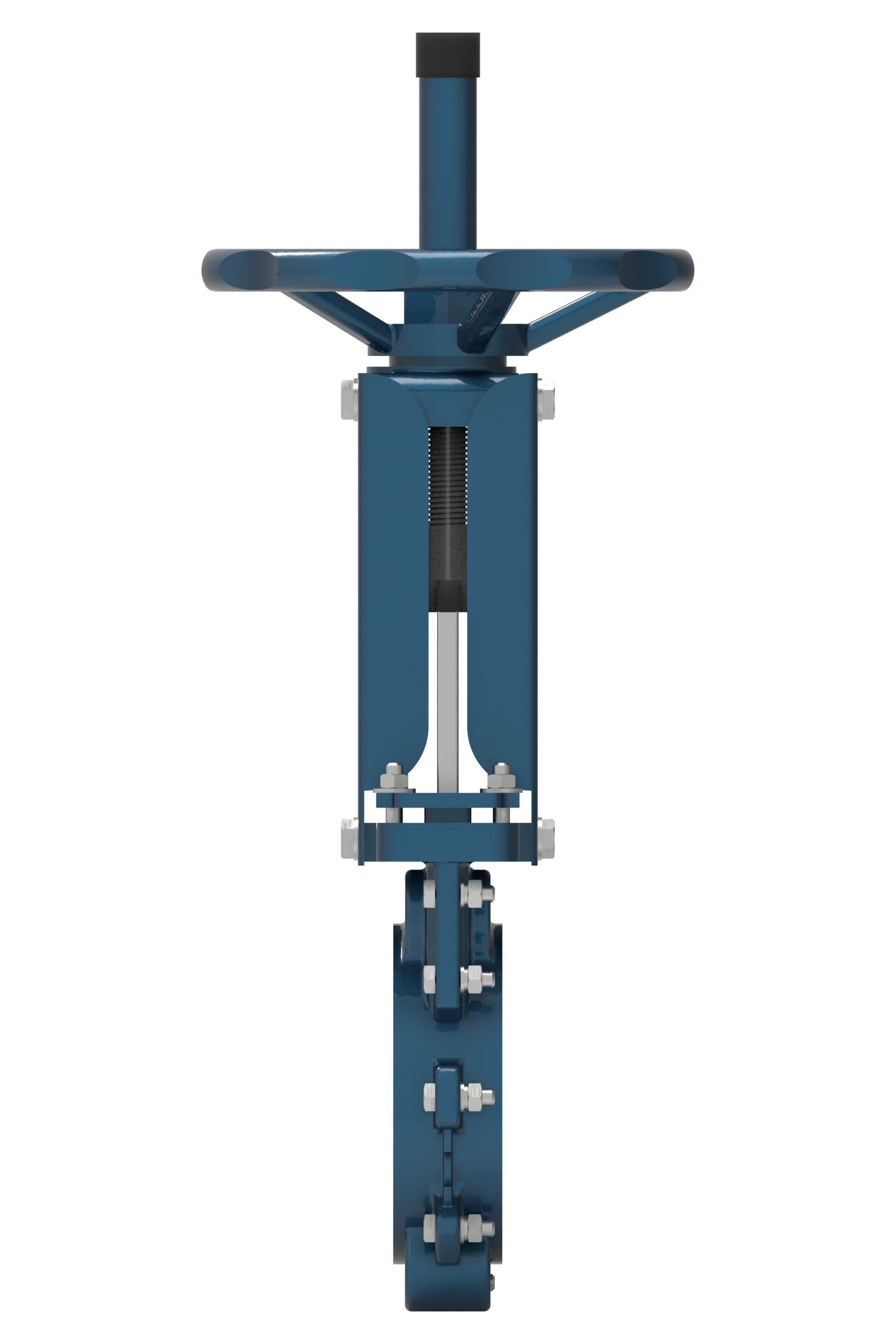

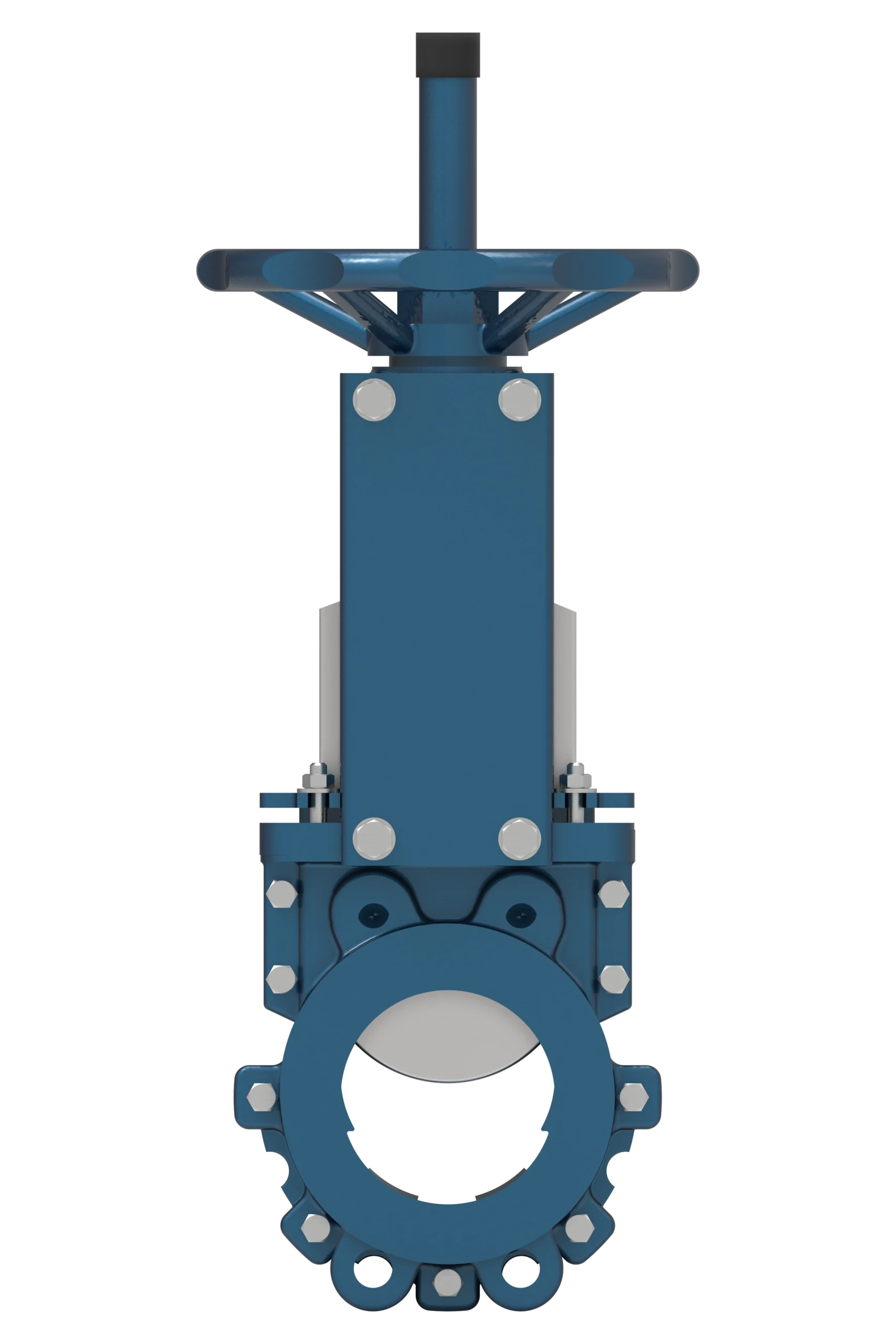

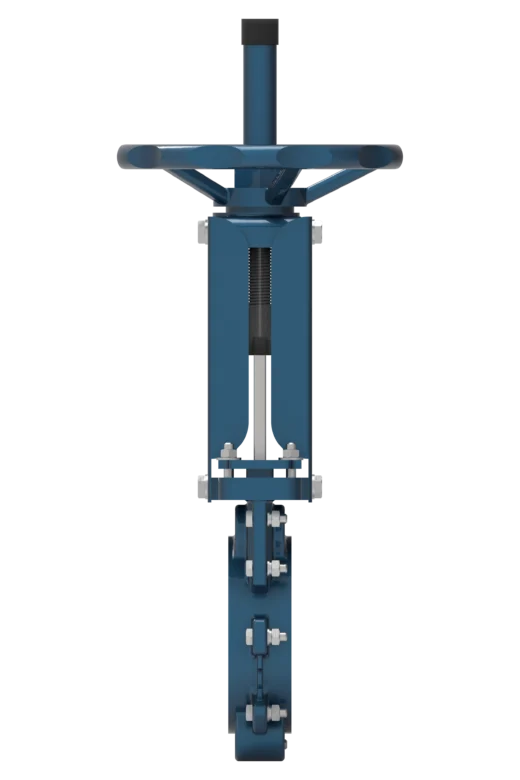

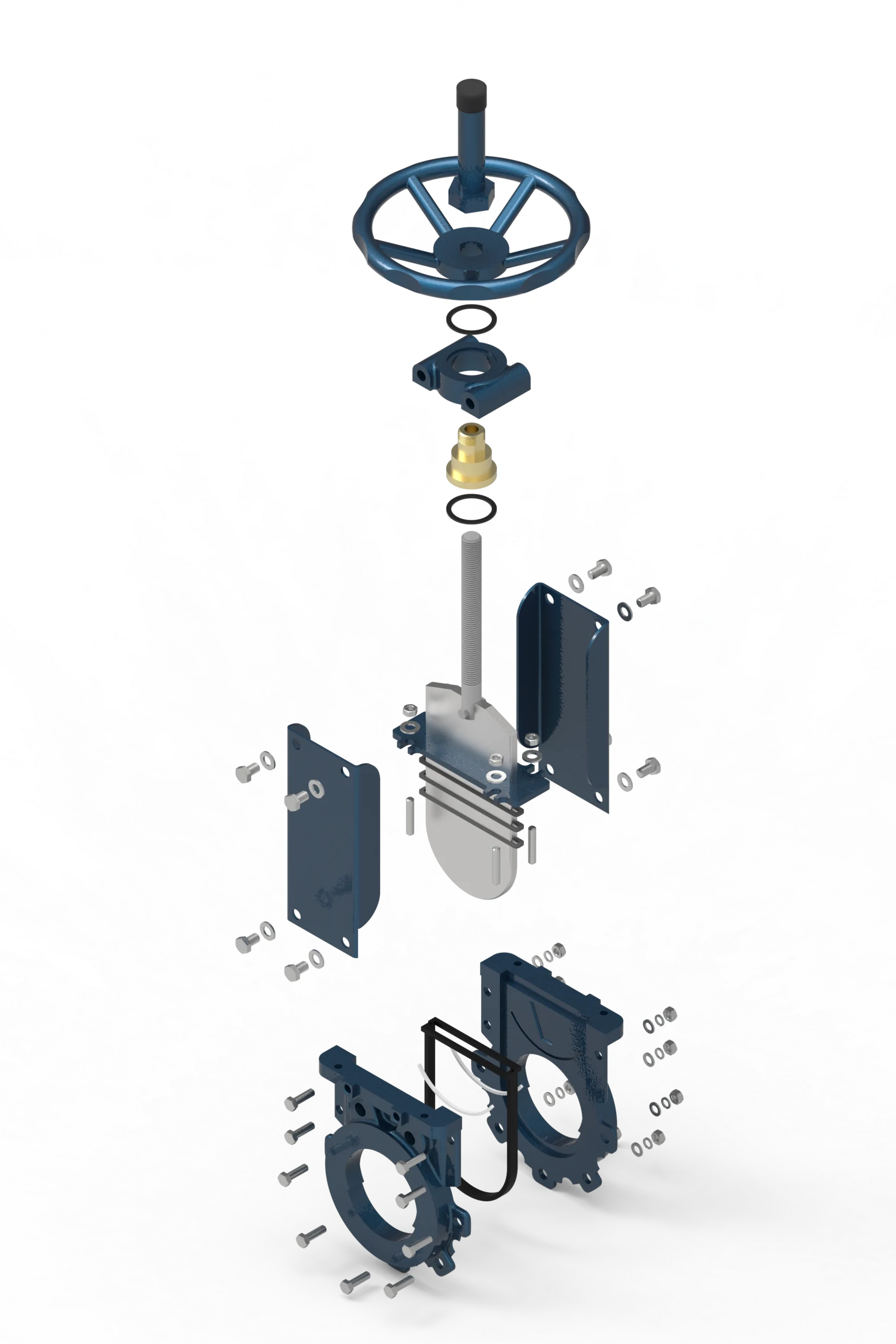

Knife gate valve model 104 in sizes DN50–DN1000, with a pressure rating of PN10/PN16, featuring a two-piece body construction and a U-type seat.

Technical Specifications

  • Nominal diameter DN 50-1000
  • Nominal pressure PN10-16
  • Medium temperature -30 °C ... +200 °C
  • Types of Valve End Connections Wafer, lug
  • Leakage Class «А»
  • Mounting Position Any, except for downward-driven devices
  • Types of Control — manual (lever)

    — manual (handwheel)
    — manual (gearbox)
    — pneumatic actuation

    — electric actuation
  • Warranty Period 12 months
  • Average Service Life 2500 cycles
  • Guaranteed Service Life Not less than 1000 cycles

Technical Drawings and Dimensions

Nominal Pressure PN10

Basic Dimensions Table

DND, mmD1, mmD2, mmL, mmn-ød
50 165 125 102 48 4-M16
65 185 145 122 48 4-M16 / 8-M16
80 200 160 138 51 8-M16
100 220 180 158 51 8-M16
125 250 210 188 57 8-M16
150 285 240 212 57 8-M20
200 340 295 268 70 8-M20
250 395 350 320 70 12-M20
300 445 400 370 76 12-M20
350 505 460 430 76 16-M20
400 565 515 482 89 16-M24
450 615 565 532 89 20-M24
500 670 620 585 114 20-M24
600 780 725 685 114 20-M27

Tabular values for diameters DN700–DN1000 and for pressure PN16 are available upon request

Product Description

Material options

ComponentMaterialEN designation
Body
Ductile ironGGG40EN-GJS-400-15
Cast carbon steelASTM A216 WCBGP240GH (1.0619)
Cast stainless steelASTM A351 CF8 / CF31.4308 / 1.4309
Cast stainless steelASTM A351 CF8M / CF3M1.4408 / 1.4409
Duplex / Super duplexCast grade selected for the configurationAccording to specification
Gate
Stainless steelAISI 304 / 316 / 316L / 316Ti1.4301 / 1.4401 / 1.4404 / 1.4571
Seat
Elastomeric U-shaped seatEPDM / NBR / FKMSelected for the medium

Body, gate and seat materials are selected for the operating conditions. The material combination and operating limits are specified in the valve datasheet.
