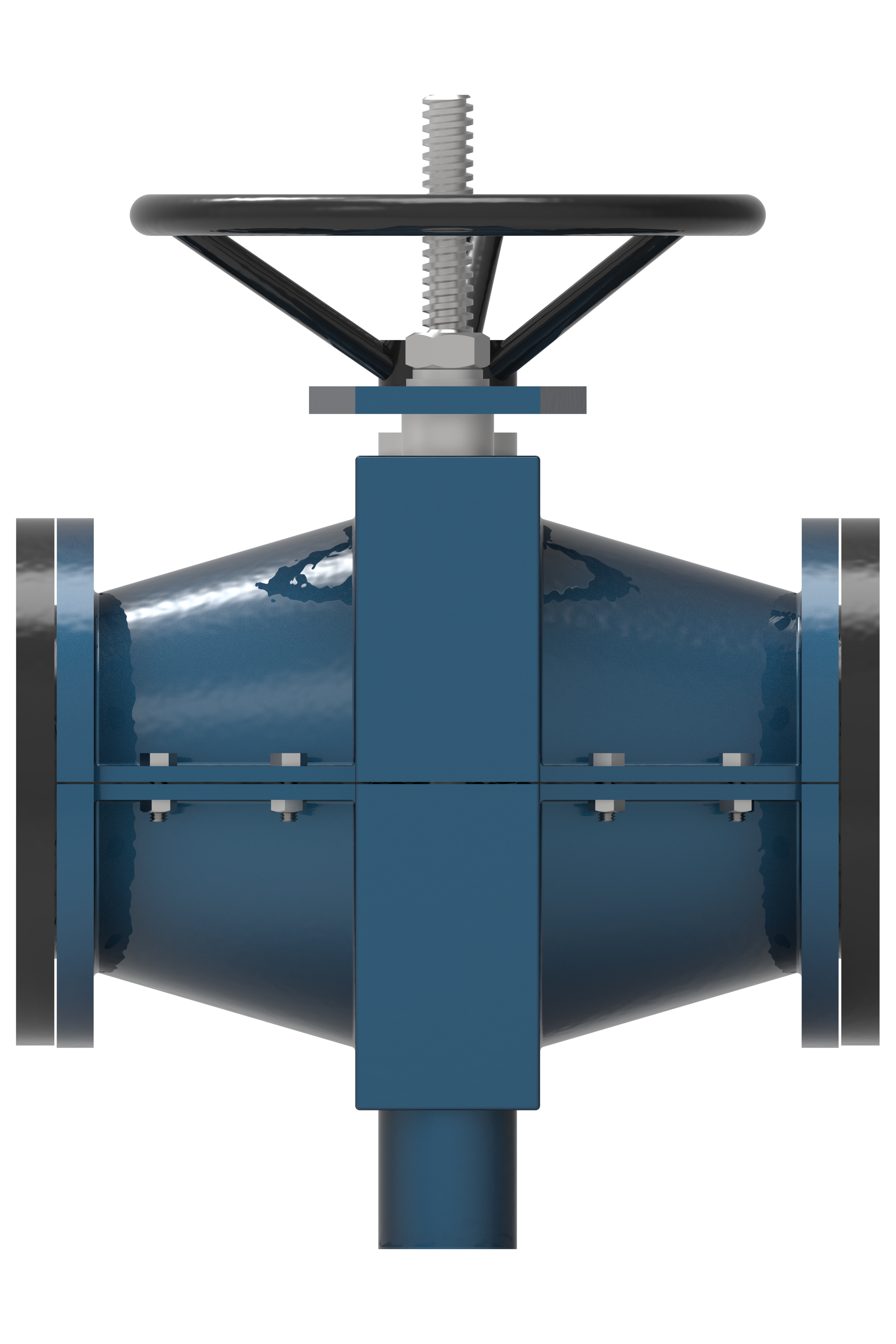

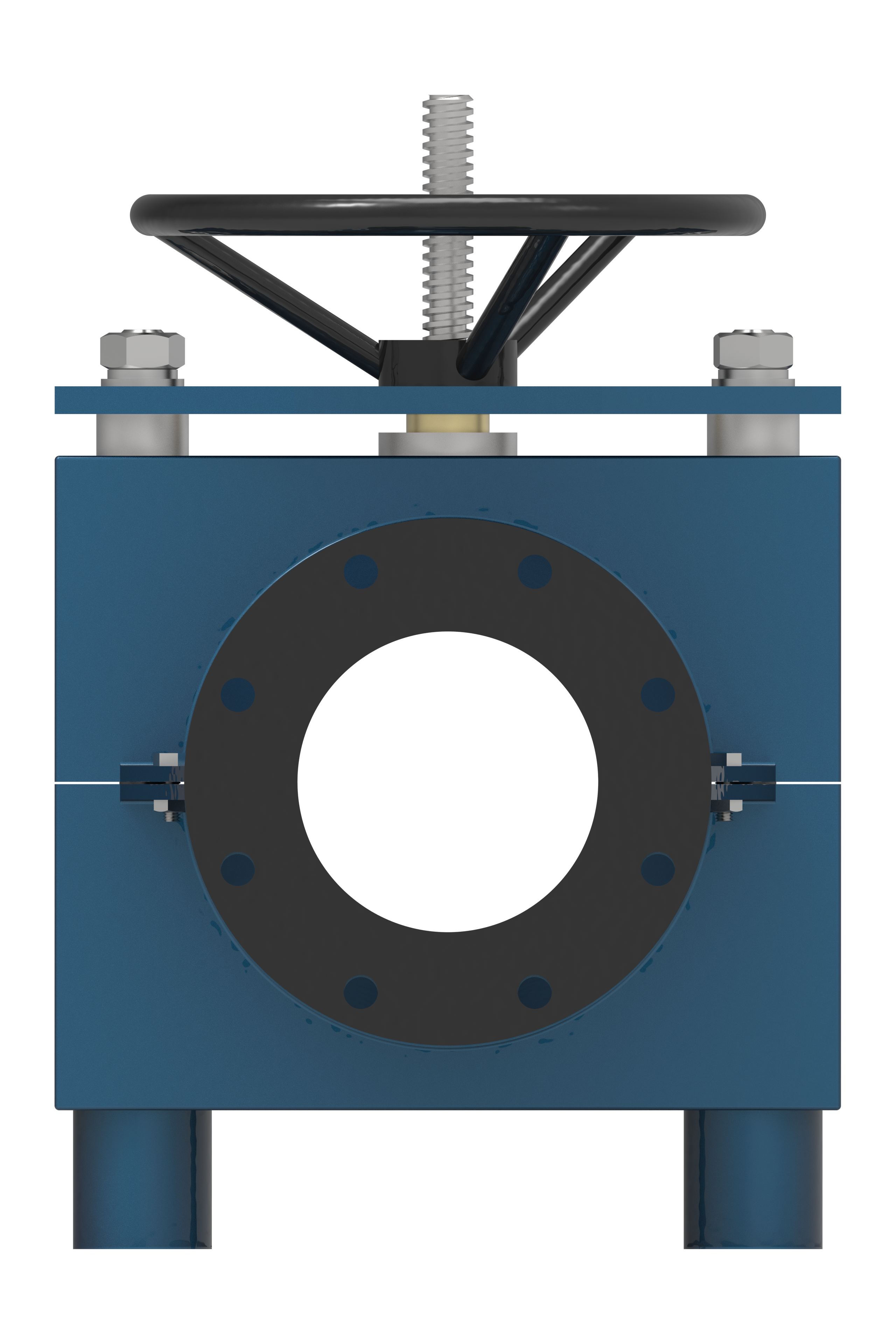

Enclosed-body pinch valve 204M
Technical Specifications
Nominal diameter DN 50-1200- Nominal pressure PN10, PN16, PN25, PN40
- Medium temperature -60 °C ... +200 °C
- Body type Closed
- Leakage Class «А»
- Mounting Position Any, except for downward-driven devices
- Types of Control — manual (lever) — manual (handwheel)— manual (gearbox)— pneumatic actuation — electric actuation
- Warranty Period 12 months
- Average Service Life 6 000 cycles
- Guaranteed Service Life Not less than 4000 cycles

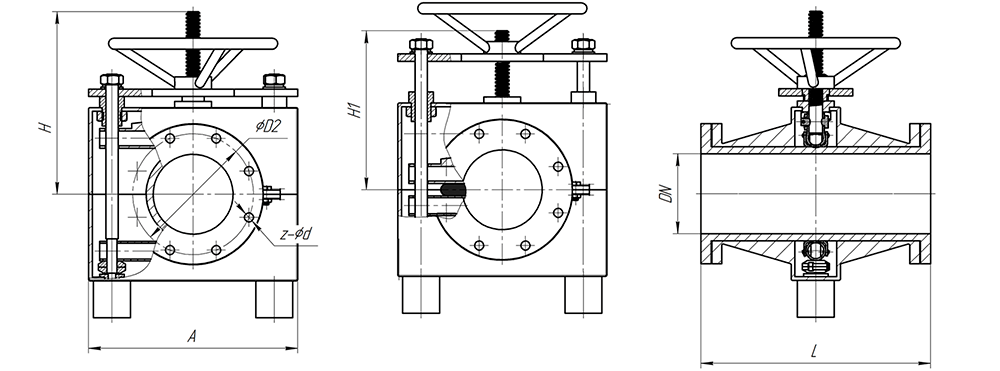

Technical Drawings and Dimensions
Basic Dimensions Table
| DN | D, mm | D1, mm | L, mm | n-ød |
|---|---|---|---|---|
| 50 | 165 | 125 | 165 | 4-M18 |
| 65 | 185 | 145 | 165 | 8-M18 |
| 80 | 200 | 160 | 200 | 8-M18 |
| 100 | 220 | 180 | 250 | 8-M18 |
| 125 | 250 | 210 | 310 | 8-M18 |
| 150 | 285 | 240 | 375 | 8-M22 |
| 200 | 340 | 295 | 500 | 8-M22 |
| 250 | 395 | 350 | 625 | 12-M22 |
| 300 | 445 | 400 | 750 | 12-M22 |
| 350 | 505 | 460 | 875 | 16-M22 |
| 400 | 565 | 515 | 1000 | 16-M26 |
| 450 | 615 | 565 | 1125 | 20-M26 |
| 500 | 670 | 620 | 1250 | 20-M26 |
| 600 | 780 | 725 | 1500 | 20-M30 |
Tabular values for diameters DN700–DN1200 and for pressure PN16 are available upon request

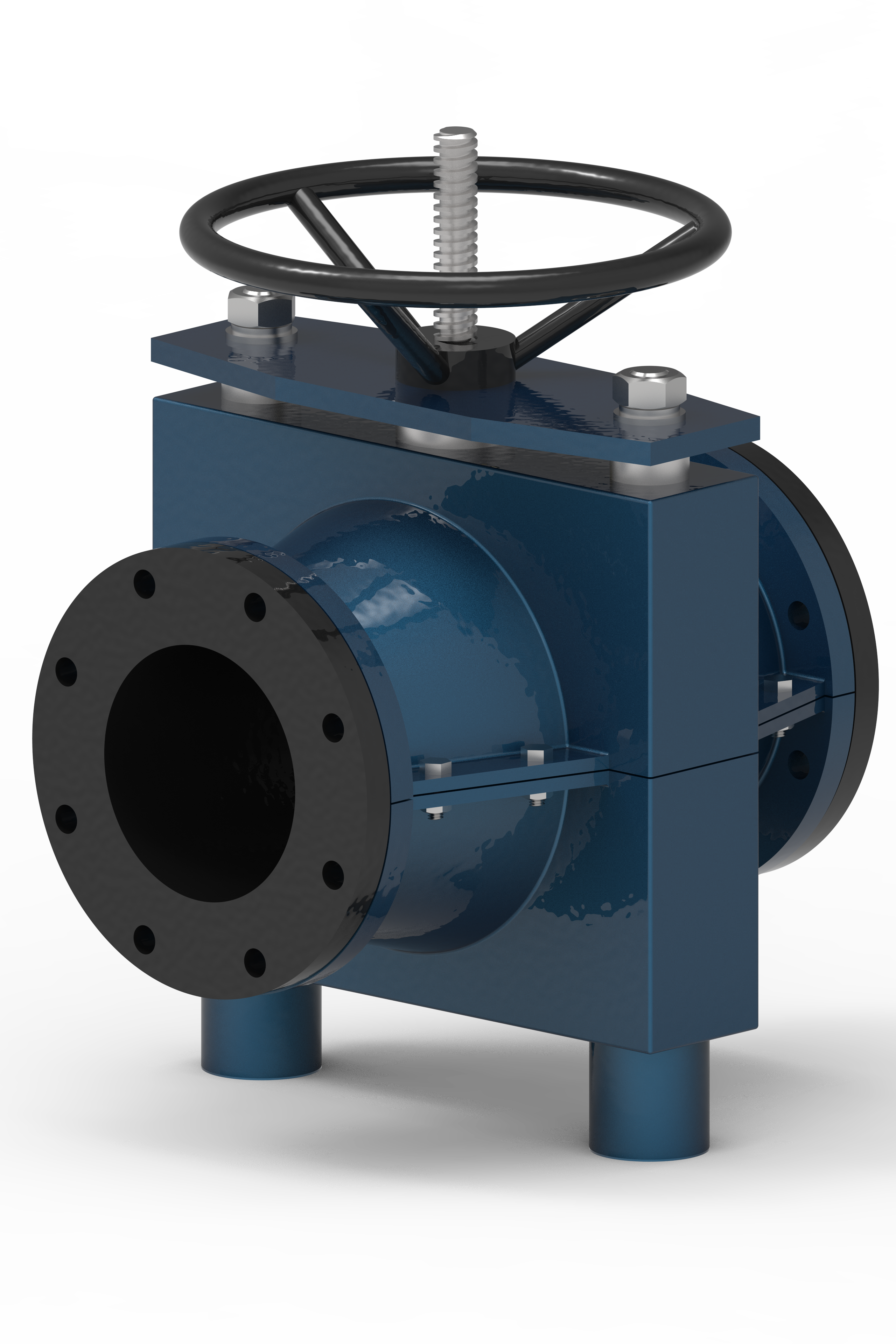

Product Description

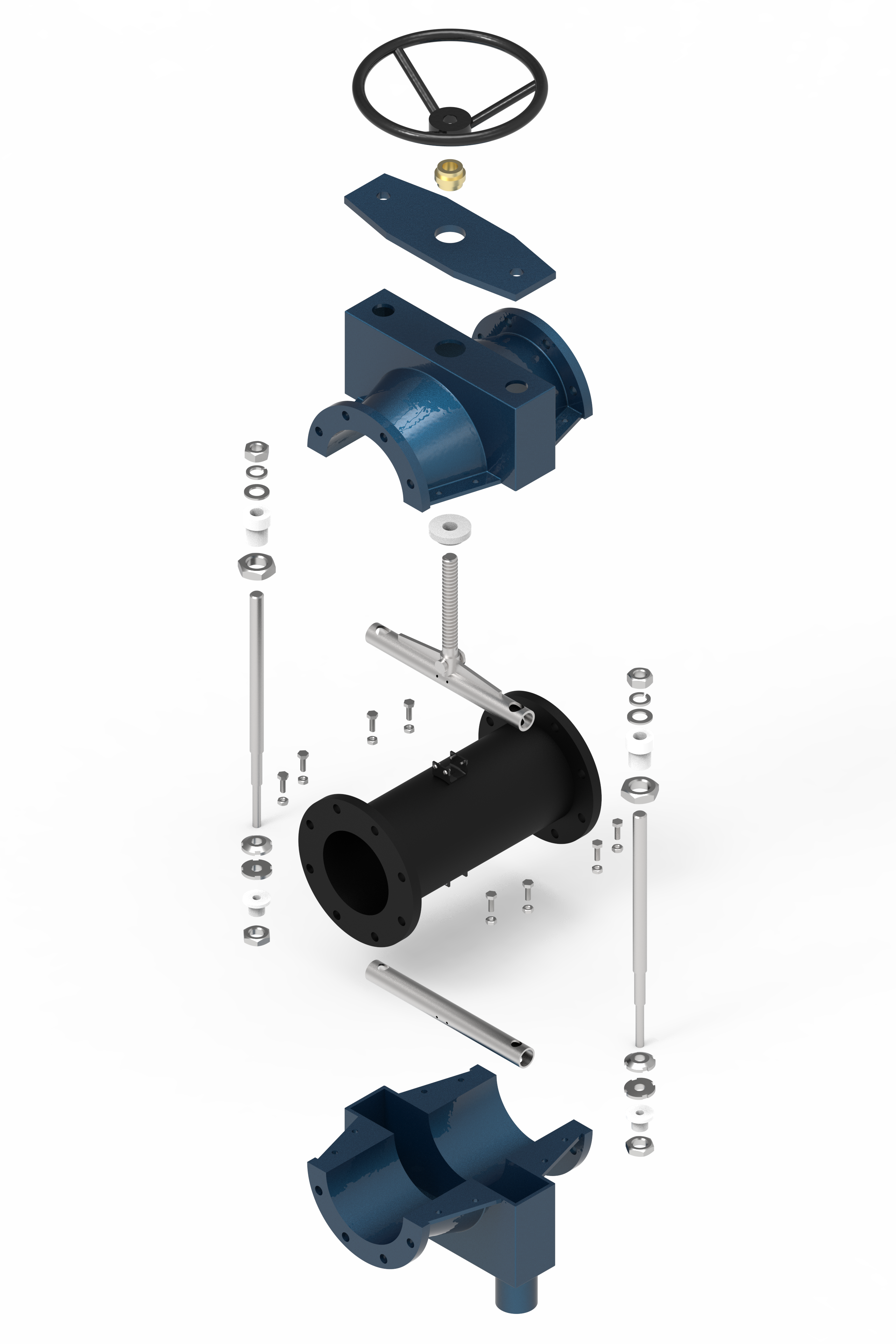

Pinch valve model 204M is designed for flow isolation and control in applications involving abrasive slurries, sludge, powders and other media containing solids. Its enclosed, two-piece body houses a replaceable elastomer sleeve and a mechanism that compresses the sleeve from both sides.
The sleeve forms the flow passage and separates the process medium from the valve body during normal operation. Sleeve material, reinforcement and actuation are selected for the operating conditions. A worn sleeve can be replaced without replacing the complete valve.
Available configurations
- Sizes: DN 50–1200;
- Pressure ratings: PN 10, PN 16, PN 25 and PN 40;
- Body design: enclosed, two-piece construction;
- Flow passage: full bore in the fully open position;
- Function: on/off isolation or modulating control, depending on the selected configuration;
- Operation: manual, pneumatic or electric.
Availability of each size, pressure rating, sleeve material and actuator combination depends on the selected execution. Flange drilling and connection dimensions are specified for the installation.
Design features and benefits
| Feature | Benefit |
|---|---|
| Replaceable elastomer sleeve | Allows the worn flow-contact component to be replaced while retaining the valve body and operating mechanism. |
| Dual-sided sleeve compression | Opposing pinch elements compress the sleeve to reduce the flow area or close the passage. |
| Full-bore flow passage | Provides an unobstructed passage when fully open, without a gate, disc or ball in the flow path. |
| Reinforced sleeve construction | Combines a medium-contact layer with reinforcement selected for the pressure and repeated flexing duty. |
| Sleeve opening tabs | Assist the sleeve in returning to its open shape as the operating mechanism retracts. |
| Two-piece enclosed body | Surrounds the sleeve and can be dismantled to provide access for inspection and replacement. |
Typical applications
- Mining and mineral processing: ore slurries, mineral suspensions, sand handling, flotation and dewatering circuits;
- Water and wastewater treatment: sludge, grit-laden water, raw sewage and lime suspensions;
- Chemical processing: compatible chemical solutions, abrasive suspensions and process waste;
- Pulp and paper: fibre suspensions, process sludge and other solids-containing streams;
- Powder and bulk material handling: flow isolation of compatible powders and granular media.
Sleeve material selection
The elastomer sleeve is selected primarily for abrasion resistance, chemical compatibility and operating temperature. The compound and reinforcement must also suit the working pressure and operating cycle.
| Sleeve material | Reference temperature range | Typical applications and media |
|---|---|---|
| NR Natural rubber | −40°C to +80°C | Abrasive water-based slurries, mineral suspensions, sand-laden water and coal slurry. |
| NR + Linatex | −40°C to +85°C | Severe abrasive duties with the specified natural rubber lining, including sand, coal and mineral slurry handling. |
| NBR Nitrile rubber | −40°C to +120°C | Oily water, mineral oils and compatible petroleum products, including selected fuels. |
| EPDM | −50°C to +130°C | Water-based media, salt solutions and compatible dilute acids and alkalis. |
| SBR Styrene-butadiene rubber | −40°C to +100°C | Abrasive water-based media, contaminated water and selected mineral suspensions. |
| CSM Chlorosulfonated polyethylene | −40°C to +130°C | Selected chemical solutions and contaminated process media requiring a compatible chemical-resistant compound. |
| IIR Butyl rubber | −50°C to +130°C | Selected chemical duties, compatible polar solvents and applications requiring low gas permeability. |
| FKM Fluoroelastomer | −20°C to +150°C | Compatible hydrocarbons and chemical media requiring elevated-temperature resistance. |
Temperature ranges are selection references for the listed compounds, not simultaneous pressure-temperature ratings. Final suitability depends on the supplied sleeve formulation, reinforcement, medium composition and concentration, pressure and duty cycle.
Body material options
| Material | Designation | EN reference |
|---|---|---|
| Ductile iron | GGG40 | EN-GJS-400-15 |
| Cast carbon steel | ASTM A216 WCB | GP240GH (1.0619) |
| Cast stainless steel | ASTM A351 CF8 | 1.4308 |
| Cast stainless steel | ASTM A351 CF8M | 1.4408 |
| Aluminium alloy | Grade selected for the configuration | According to specification |
Body material is selected for mechanical requirements and the installation environment. Chemical compatibility with the process medium is primarily determined by the sleeve. EN references do not establish automatic interchangeability with ASTM grades.
Actuation and flow control
- Manual operation: handwheel or gearbox, depending on valve size and operating force;
- Pneumatic operation: actuator selected for the required closing force and operating conditions;
- Electric operation: actuator selected for on/off or modulating duty.
For modulating applications, sleeve geometry and actuator control are selected using the required flow range and pressure drop. Position feedback and control accessories are specified to match the automation requirements.
Maintenance and replacement sleeves
The disassemblable body provides access to the sleeve for inspection and replacement. Maintenance intervals depend on abrasion, chemical exposure, pressure, temperature and the frequency of operation.
For a replacement sleeve, provide the valve model and serial number, size, pressure rating, existing sleeve material and operating conditions. A sleeve drawing or photographs help identify the correct dimensions and mounting features.
Information for valve selection
Please specify the valve size, flange standard and drilling, process medium, solids content and particle size, operating pressure and temperature, and required actuation. For flow control, also provide minimum, normal and maximum flow rates together with upstream and downstream pressures.
